Balance and power. Professional rear handle petrol chain saw.
CS-390ESX
Balance and power. Professional rear handle petrol chain saw you can depend on.
Where to buy
Scroll

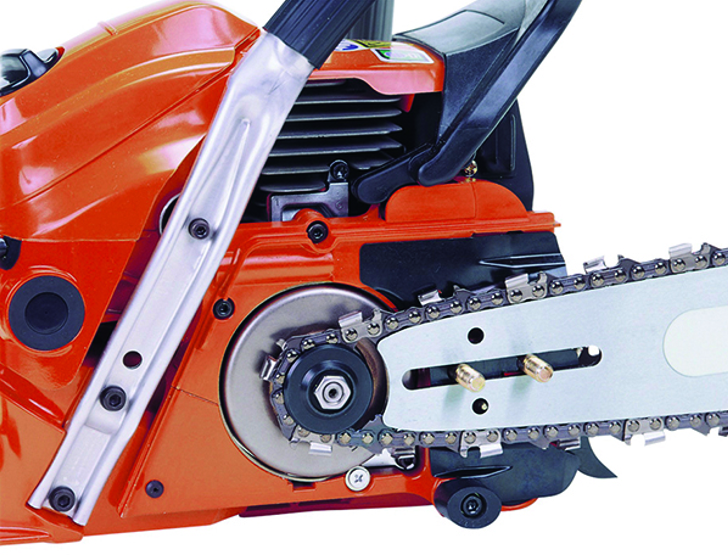

Inboard clutch.
The inboard clutch increases maneuverability by allowing the body to be extra compact and slim.
Gforce dust free.
Featuring ECHO's patented G-FORCE air cleaner system & large air filter.
Anti icing system.
In winter simply slide to the left to redirect heat and prevent icing.
Best Features.
Power to weight ratio
Super light-weight design with exceptional power.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
Product Details.
| Engine displacement (cm³) | 38.4 |
|---|---|
| Output (kw) | 1.92 |
| Output (ps) | 2.61 |
| Dry Weight (kg) | 4.5 |
| Fuel tank capacity (l) | 0.42 |
| Fuel Consumption At Maximum Engine Power (L/h) | 1.17 |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Front |
| Saw Chain Pitch (inch) | 0.325 |
| Guide Bar Gauge (inch) | 0.050(0.058) |
| Applicable Bar Length (cm/inch) 1 | 33, 38 / 13, 15 |
| Sound pressure level (dB(A)) | 101.9 |
| Sound power level (dB(A)) | 113.1 |
| CO² (g/kW・h) 2 | 855 |
| Vibration Front handle/Rear handle (m/s²) | 4.7 / 5.0 |
- 1
- Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
- 2
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
