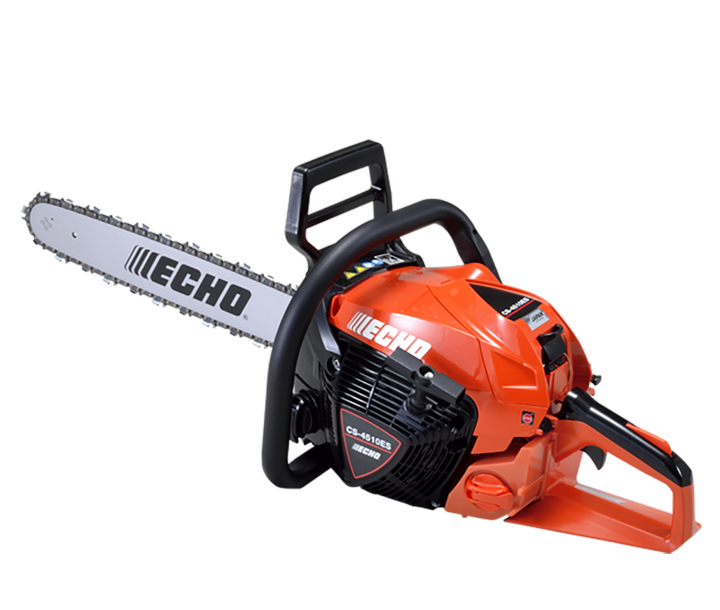

The CS-4510ES is a great all-round chain saw with enough power to take on more heavy duty tasks. Equipped with a 45.0cm³ professional grade engine and packed full of features to make your job easier. ES Start, ECHO's patented easy start system ensures your engine starts with ease, every single time. A newly designed air filter system is both easy to access and extremely effective at keeping your machine free from dust and debris. Weighing in at just 5.0kg, the saw has an excellent power-to-weight ratio, making it ideal for a range of jobs.
Rear handle professional chain saw that exceeds expectations. Featuring a powerful 45cm³ engine and weighing only 5kg, this robust saw will see you through any job.

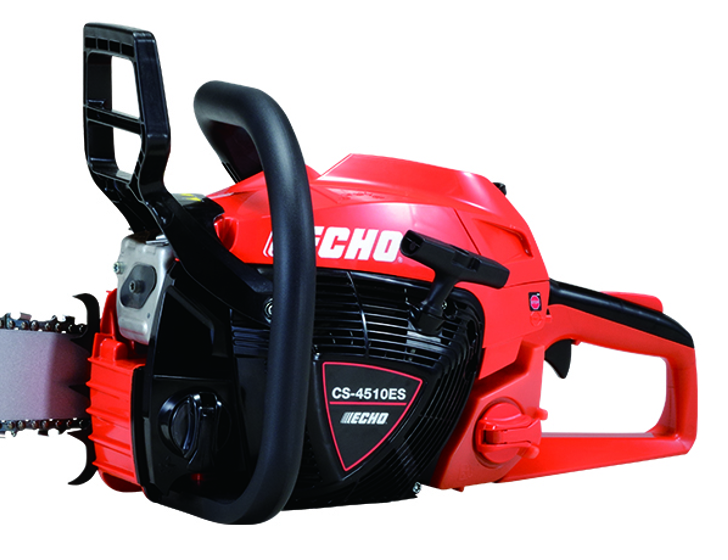

45.0cm³ professional-grade, 2-stroke engine provides category-leading cutting performance for better work efficiency.
Small, lightweight design alongside a powerful engine for a superb power to weight ratio.
Tool-less air filter cover allowing easy air filter access, even when wearing gloves; a side access chain tensioner enabling easy chain adjustment; an anti-icing system preventing the carburettor from freezing in colder months.
Power to weight ratio
Super light-weight design with exceptional power.
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
|Engine displacement (cm³)||45.0|
|Dry Weight (kg)||5.0|
|Fuel tank capacity (l)||0.48|
|Chain Oil Tank Capacity (ml)||330|
|Fuel Consumption At Maximum Engine Power (L/h)||1.19|
|Start Assist System||ES-start|
|Choke w/ Automatic Fast Idle Release||Yes|
|Saw Chain Pitch (inch)||0.325|
|Guide Bar Gauge (inch)||0.058 (0.050)|
|Applicable Bar Length (cm/inch) 1||33, 38, 45, 50 / 13, 15, 18, 20|
|Sound pressure level (dB(A))||100.2|
|Sound power level (dB(A))||111.9|
|CO² (g/kW・h) 2||803|
|Vibration Front handle/Rear handle (m/s²)||2.6 / 2.8|
- Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
CS-4510ES an Overview
A farmer in the forest puts the ECHO CS-4510ES to work. Learn about the features that make it a chainsaw you can depe…
