CS-2511TES

Best power to weight ratio on the market and widely considered as the best top handle chain saw.

Where to buy
CS-2511TES
Scroll
scroll

Due to its industry leading power to weight ration and ergonomics, the CS-2511TES has become a favourite with arborists, carvers and foresters around the world. The CS-2511TES C features a carving bar.

Light-weight

Light-weight

Weighing just 2.3kg it's the lightest, most compact chain saw in our range.

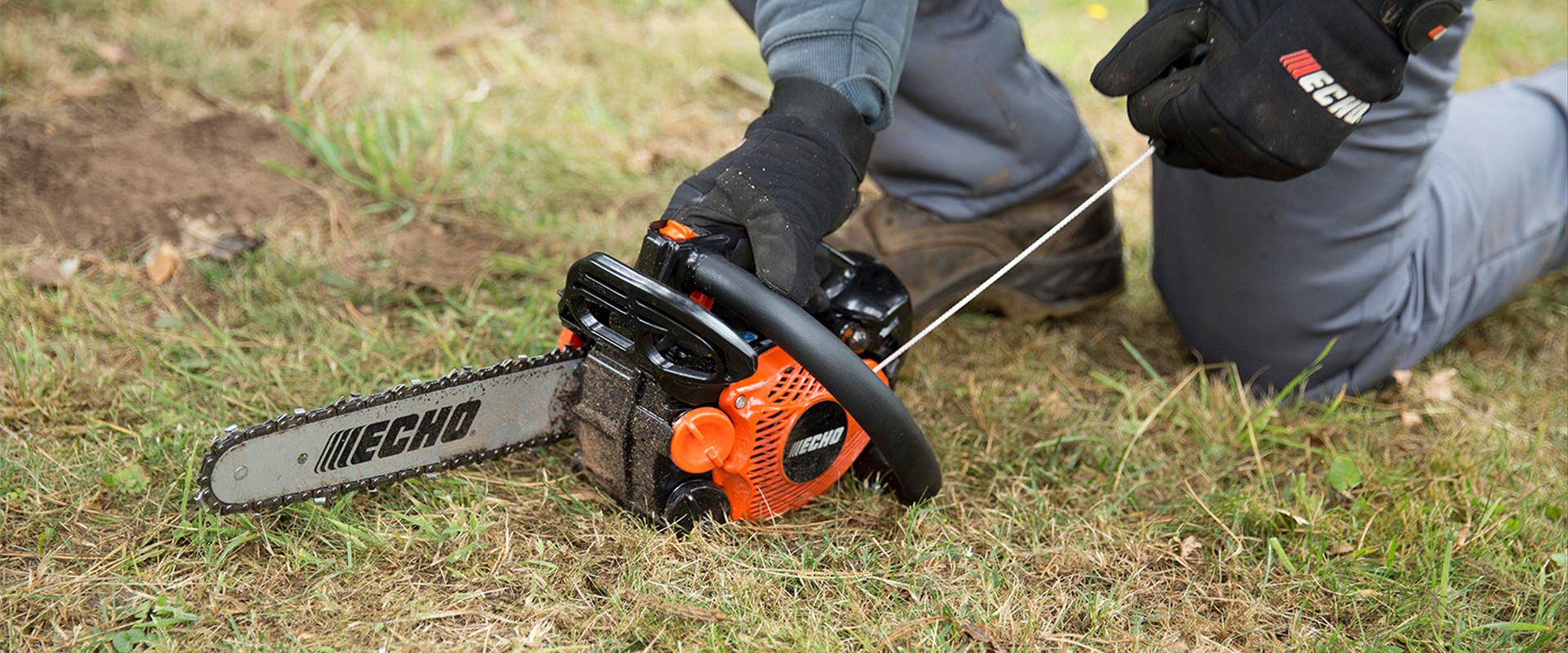

Starter grip assist caps

Starter grip assist caps

Starter grip can be used to open the caps manually.

World famous performance.

World famous performance.

Due to its incredible performance and low weight, the CS-2511TES has become a favourite amongst arborists around the world. In a profession that demands such a high level of skill and precision, only the very best tools will suffice.

Best Features.

Lightweight

Engineered to weigh less whilst retaining robust durability.

Ergonomics

Designed to maximise efficiency and comfort.

Power to weight ratio

Super light-weight design with exceptional power.

Product Details.

Engine displacement (cm³) 25.0
Output (kw) 1.11
Output (ps) 1.51
Dry Weight (kg) 2.3
Fuel tank capacity (l) 0.19
Fuel Consumption At Maximum Engine Power (L/h) 0.68
Priming Pump Yes
Ignition System CDI
Start Assist System ES-start
Chain Brake Inertia
Choke w/ Automatic Fast Idle Release Yes
Chain Tensioner Side
Saw Chain Pitch (inch) 3/8
Guide Bar Gauge (inch) 0.050
Applicable Bar Length (cm/inch) 1 20, 25, 30 / 8, 10, 12
Sound pressure level (dB(A)) 99.7
Sound power level (dB(A)) 110.3
CO² (g/kW・h) 2 961
Vibration Front handle/Rear handle (m/s²) 3.5 / 4.0
1
Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
2
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
